Fully enclosed joint as effective against .
Surplus Heater specializes in producing corrosion-resistant titanium alloy heating tubes, which are specially used for various electroplating tanks, pickling pools, etc. and are a kind of electric heating tubes with corrosive effect. The product has the advantages of long service life, no corrosion, no leakage, safety and reliability, and excellent anti-aging. In order to ensure the safe use of the product, the connector adopts a completely closed design, which can effectively prevent acid and alkali. At the same time, the cold end and overheat safety protection system can be fully customized according to customer needs.
Production Specification
| Horizontal Length (Hot Zone) | 700mm; 915mm; 940mm |
| Vertical (Cold Zone) | 825mm; 1220mm; 1270mm |
| Horizontal Tubular Diameter | 50mm(Customize) |
| Vertical Tubular Diameter | 25mm (Customize) |
| Conduit Cable | 2000mm (Customize) |
| Material | Titanium Alloy |
| Voltage | 110-480V |
| Wattage | 1KW-30KW |
| One-Time Thermal Fuse Range | 144ºC will Cut Off |

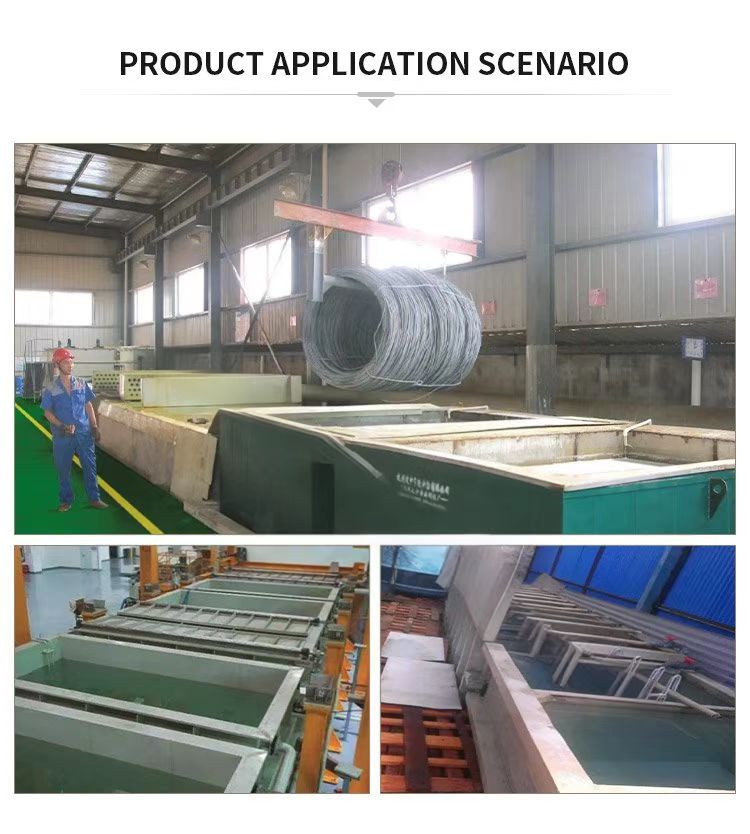

| Use Environment | Electroplating or pickling tank |

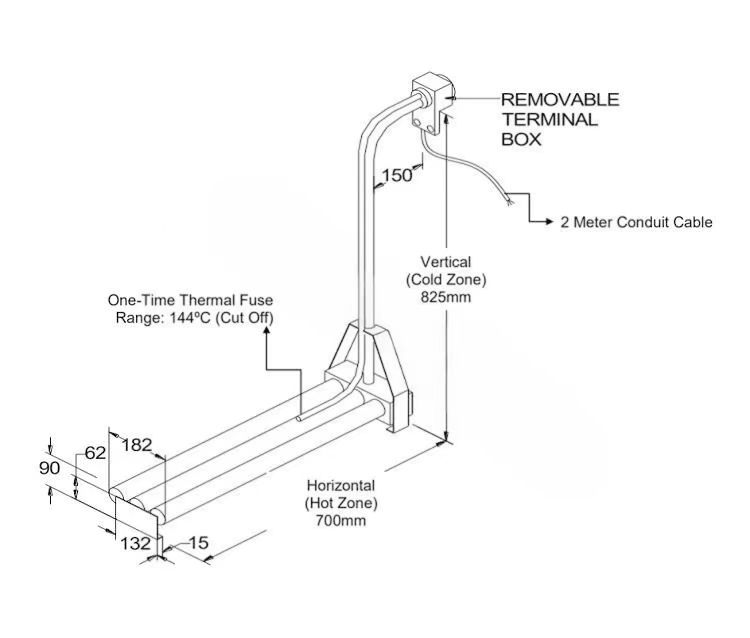

Product Structure
Detailed Photos

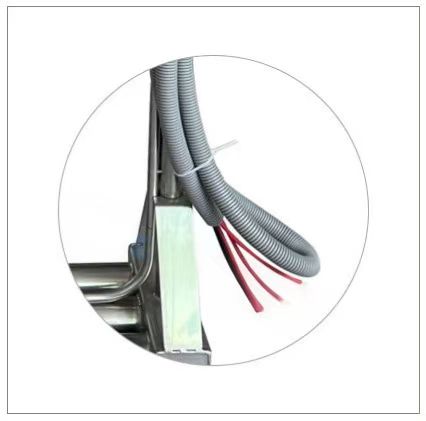

Power line grounding protection, high power is also safe.

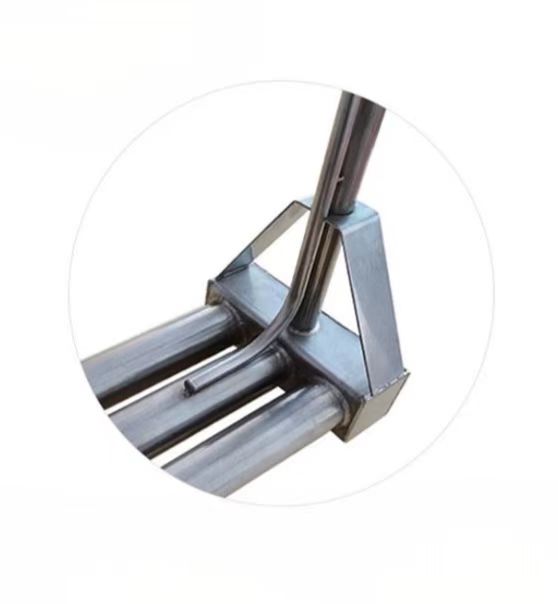

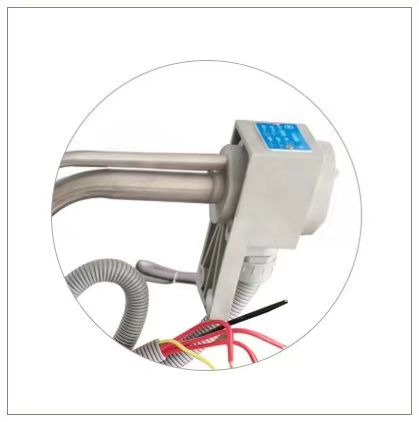

2.FULLY SEALED JOINT
3.TITANIUM ALLOY MATERIAL
No corrosion, no leakage, high thermal efficiency, safe and reliable.
